HYPRO 765 HB Wheel Carried Tractor Processor

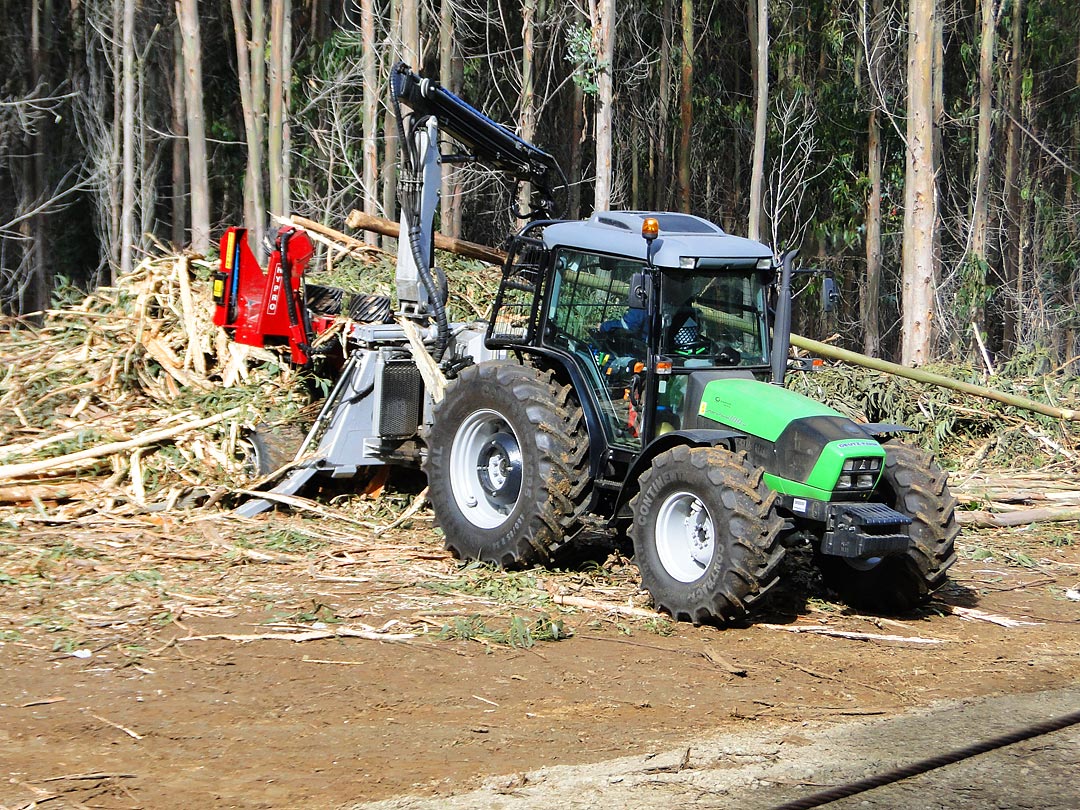

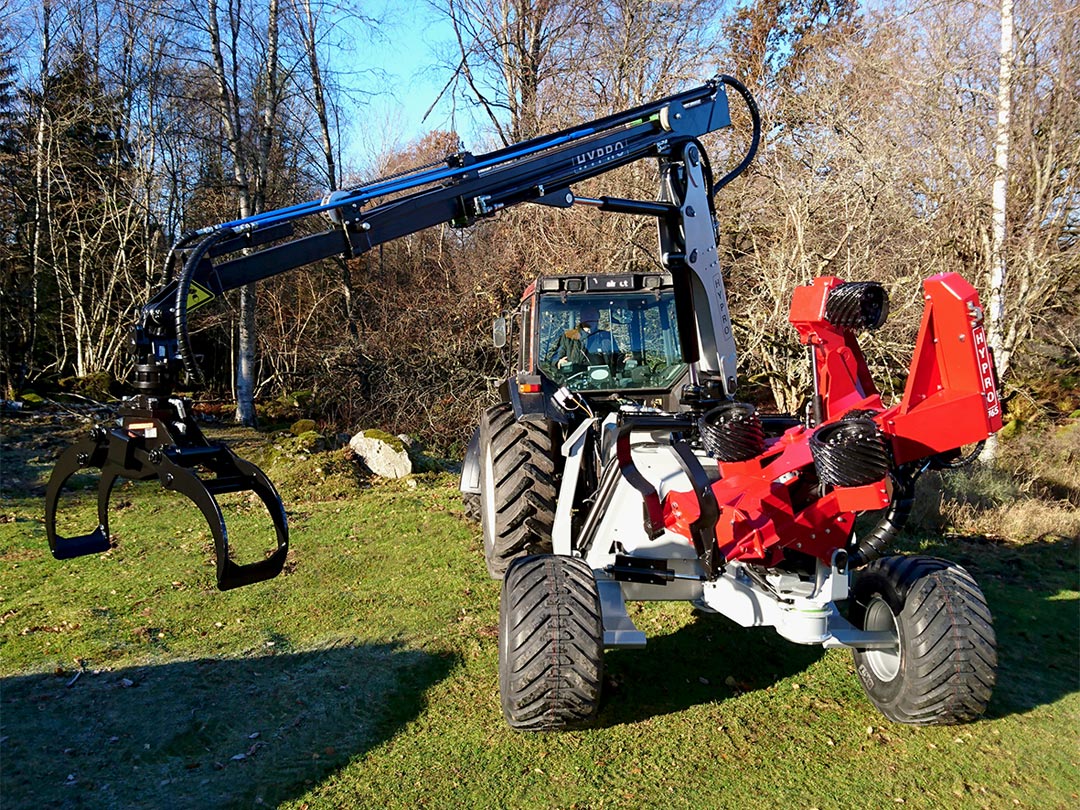

HYPRO 765 Wheel Carried is a debarking processor with a 7,5 meter crane. The processor has its own hydraulic system with pump and tank fitted on the processor, making connecting and disconnecting a fast and simple task. This also makes it possible to use a smaller tractor since the extra weight on the tractor only is about 200kg and the minimum requirement for 765 Wheel Carried is 70 horse powers.
Go to procuct info & technical data
HYPRO 765 HB

HYPRO 765 HB Wheel Carried Tractor Processor

Both the crane and the processor have a remarkable working radius of 280°, which allows felling on both sides. The lateral movement together with the frame steering provides generous adjustment to suit the direction of the fallen tree and allow distances of over 3,5 meters between the timber stacks. The HYPRO 765 HB Wheel Carried is suitable for both thinning operations and for final cutting since it can process tree dimensions from 5 cm up to 45 cm in diameter.

HYPRO 765 HB Wheel Carried delivers a very high feeding force to the feeder wheels. The machine has a total of four feeder wheels, two horizontal and two vertical, all four wheels are feeding the log. Due to the positioning and the feeding direction of the feeder wheels the stem is debarked as it is fed through the machine. The powerful hydraulic system of the machine provides great output for feeding, debarking, delimbing and cutting. This is a machine built to handle the heavier trees. The hydraulic system is load sensing and variable, this provides the perfect level of speed, smoothness and strength as needed – which also maximizes the lifespan of the entire hydraulic system.

The machine is operated by a two-lever Canbus system with mini joysticks. Both crane and processor is operated with the same joysticks and you choose which one to operate by simply pressing a button. The joysticks are ergonomically designed for everyday usage with comfortable grip and handling and they are made to be fitted on the armrests in the tractor.

HYPRO 765 Wheel Carried is also available with ordinary non-debarking feeder wheels.

Go back to tractor eucalyptus

Technical data

Weight incl. hydr. oil3000 kg
Width when folded away:2.4 m
Ground clearance:50 cm
Length:3.6 m
Hydraulic steering:Yes
Cylinders for steering:2 pcs
Steering ability:+/-25°
Feed rate:> 3.5 m/sec
Tilt angle:65°
Slew:280°
Crane length:7.5 m
Crane slewing radius:360°
Min. tractor output:70 hp
Min. diameter:5 cm
Max delimbing diameter:40 cm
Max diameter:45 cm
Winch traction force:2 tons
Winch rope length:50 m
Hydraulic system, variable, load-sensing:74 cc
Hydraulic flow, recommended:max 150 l/min
Hydraulic pressure:250 bar
Tank capacity:150 l
PTO speed:400-540 r/min
